Services

DESIGN - ENGINEER - FABRICATE - PROTOTYPE - MANUFACTURE


Available Design and Engineering SERVICES

Static stress analysis of a 6061-T6 Aluminum Strut for Tesla Model S rear camber correction

  • Solidworks Premium 2019: CAD Design, 3D Modeling, Engineering Drawings, Photo-realistic Renders, Electrical Harness Design

  • Solidworks Simulation Professional 2019: Linear Stress Analysis through FEA, Drop Test, Thermal Structural Analysis

  • Solidworks PCB 2019: an Altium licensed ECAD solution to design and manufacture PCBs that integrate into existing or planned products

  • Electrical/Control/Robotics Engineering

  • Mechanical/Manufacturing Engineering

  • Prototyping - 3D printed Parts and Products

  • PCB Design, Prototype to Manufacturing

  • PCB Assembly and Turnkey Services

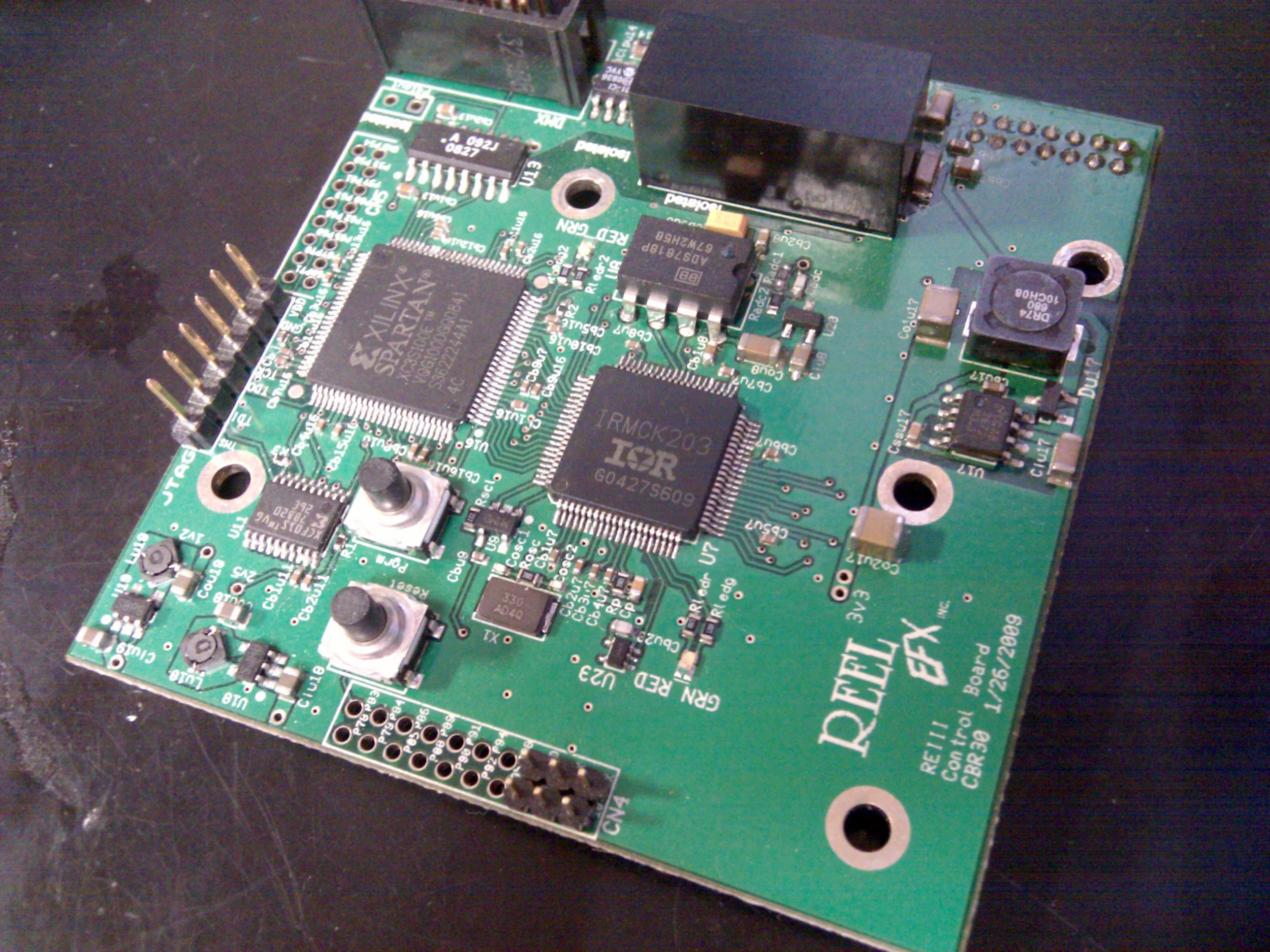

Xilinx Spartan 3E FPGA control board and 3Phase VFD controller, 4 layer PCB

  • Research and Development of new processes for unique requirements

  • Plastic Part Injection Molding Sourcing

  • FPGA Verilog HDL Hardware Programming

  • Low Cost Arduino Hardware Programming

  • Rapid RC/off shelf prop. and animatronics

  • In-House Production Manufacturing

  • Volume Production Sourcing

  • State Side CNC parts available for fastest turn around

  • Highest Value CNC services are sourced overseas and quality controlled in house

  • Micro Bead Blasting, Powder Coating, Anodizing

  • Custom Parts, Film Props, Art Assemblies, and Engraving


Capabilities

3D Printing Prototype Parts

  • FDM (Fused Deposition Modeling)

  • up to 23.6" x 23.6" x 23.6"

  • part size capability (600mm x 600mm x 600mm)

  • PETG, ABS, TPE, and Polycarbonate materials

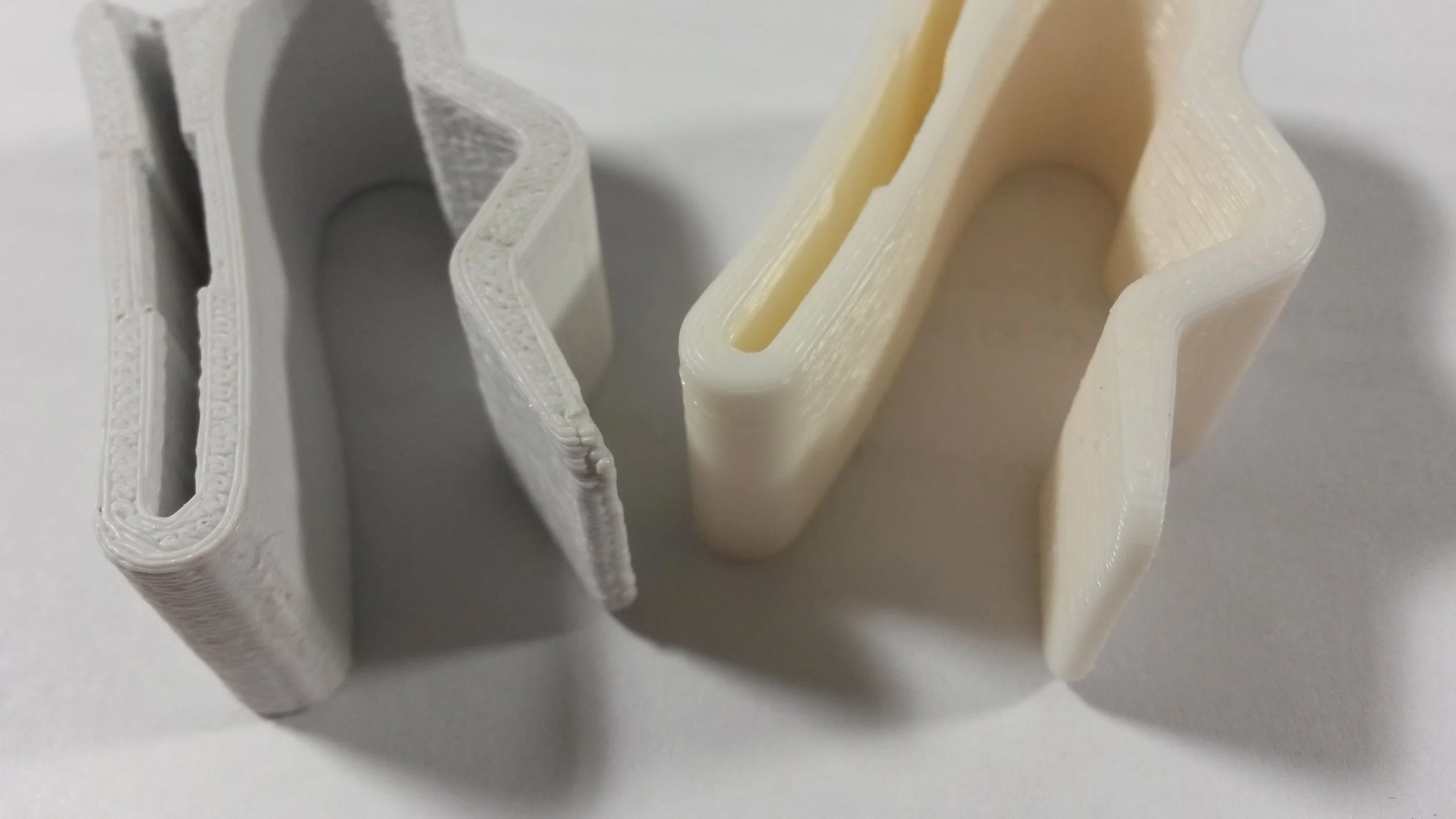

FDM sample printed by another source VS. Risch Enterprizes FDM ABS print quality

  • SLS (Selective Laser Sintering)

  • up to 4.3" x 5.1" x 5.9"

  • Black Nylon (PA12) and flexa Black TPU

SLS Black Nylon parts assembled

CNC PLASMA CUTTER

  • 48" x 48" Max Cut Area

  • up to 1/2" Steel, Stainless, or Aluminum

  • Precision 1mm Kerf up to 1/8"(3mm) plate

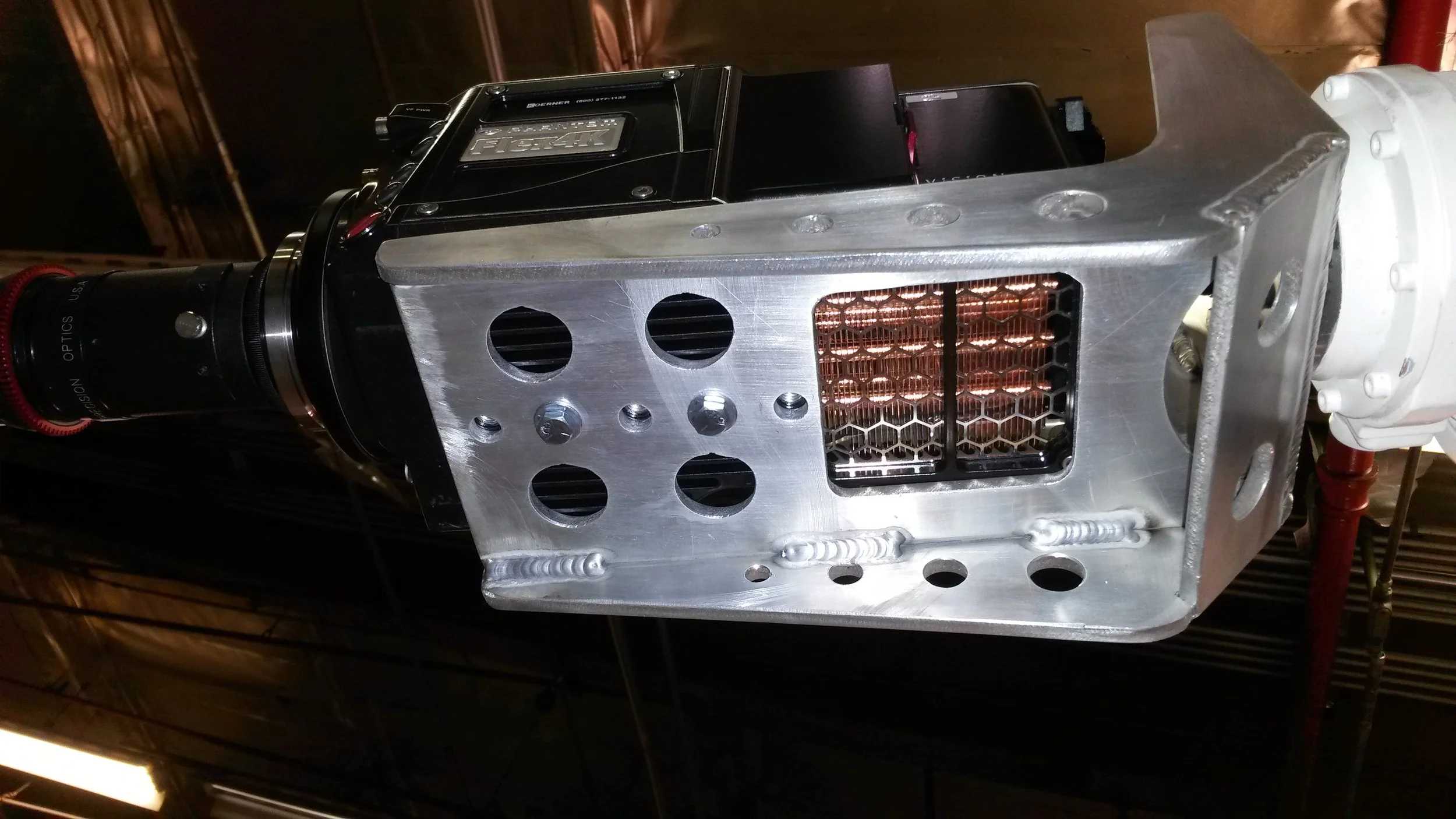

CNC Plasma Cut Camera Mount for Flex 4K made of 1/4" 6061-T6 Al

CNC Router

  • 24"x 48" Max Cut area

  • 24,000 RPM High speed Machining - Solid Carbide Tooling - Mist Coolant

Materials:

  • Carbon Fiber, Aluminum, Brass, Woods, Hard Woods, Plywoods

  • Acrylic, Polycarbonate, Delrin, HDPE aka Starboard

  • Foams, Butter Board, High Density Foams

  • and more!

CNC Router milling 4mm Carbon Fiber plate parts

Electrical Engineering Equipment

  • Fluke 200Mhz Scope 2Gs

  • Tektronics 100Mhz Scope 1Gs

  • Variable Precision Power Supplies: 20V100A, 50V20A, 60V5A, 36V1.5A, 30V3A

  • Temperature Controlled ceramic IR PCB tables and solder re-flow equipment

  • Function generator, Frequency Counter,



CNC Laser Cutters/Engravers

  • 20 Watt MOPA Fiber type

  • 150 x 150mm Area

  • Portable head for remote application

  • 150 Watt CO2 type

  • 35" x 51" Max Cut Area

  • 17" Depth box enclosures handling

  • Rotary (round part processing available)

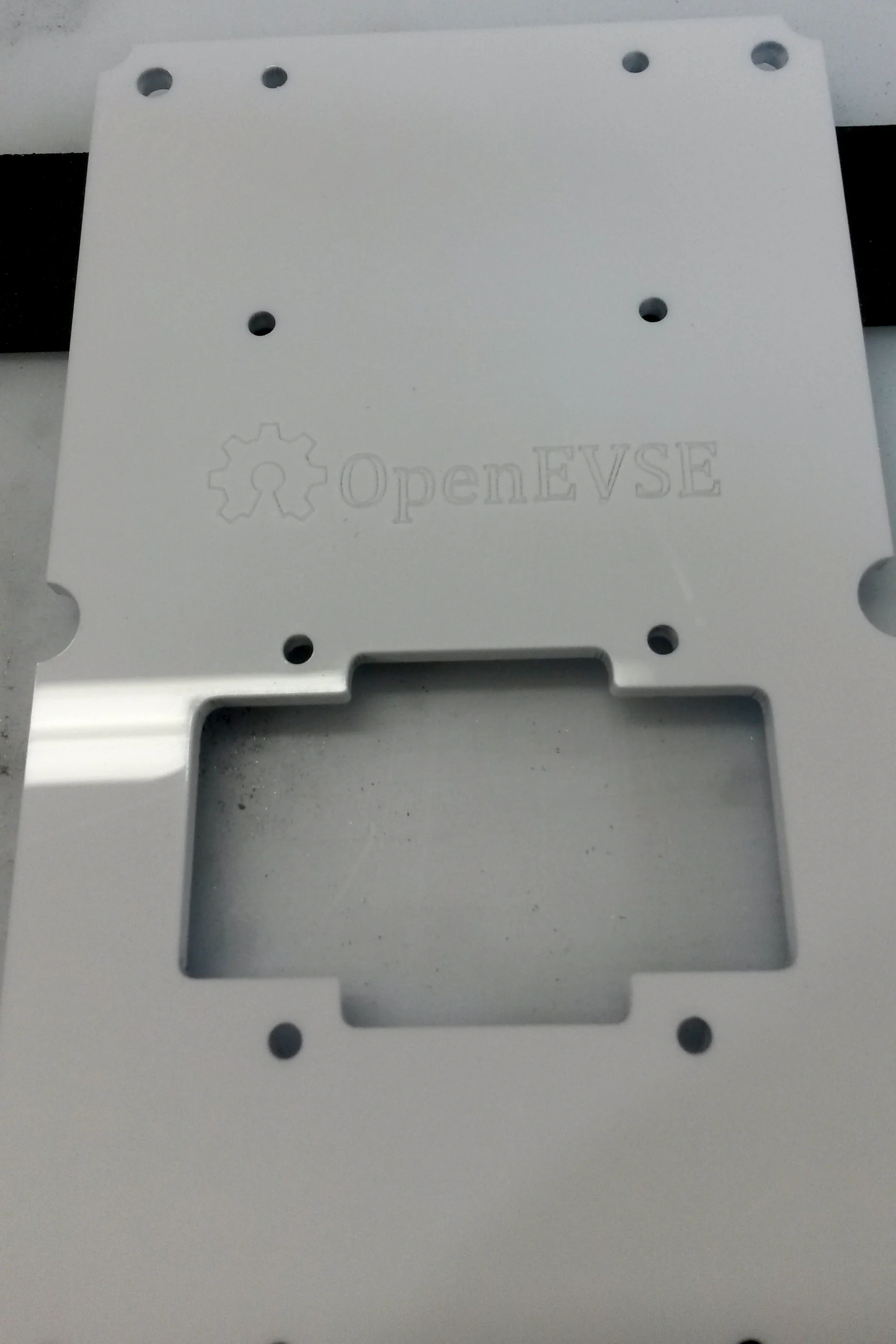

4mm White Acrylic Laser Cut and Engraved

  • 200 Watt Fiber type

  • 24" x 48" Max Cut Area

  • 17" Depth ex: box enclosure handling

  • Rotary Axis available

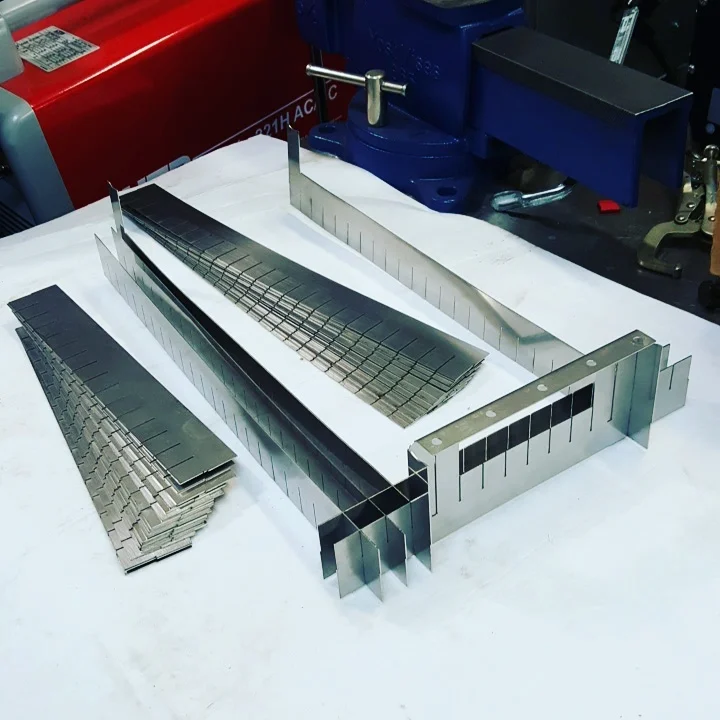

22 AWG 302 Stainless Steel Laser Cut parts

Materials

Cut:

  • FIBER: Stainless Steel, Steel, Aluminum, Brass, Copper Sheet

  • CO2: Acrylic, HDPE, Starboard, ABS, Nylon, Polycarbonate, Delrin(Acetal), PTFE, Silicon, Hardwoods, Wood, Balsa Wood, Plywood/MDF, Organic Glass, Crystal, Rubber, Leather, Fabric, Paper Board, Alumina Ceramic

Engrave/Mark: Stainless Steel, Steel, Aluminum, Brass, Copper, Anodized Metals, Stone, Artificial Stone, Marble, Corian, Granite, Tile, Ceramic, Delrin, Mica

CNC Milling

CNC Aluminum parts, sand blasted with black anodize

CNC Aluminum parts, sand blasted with black anodize

2-ton 6" stroke Pneumatic Press

  • Rapid part insertion

  • PEM studs and clinch nut insertion

  • 12" x 6" Press fixture/surface size

TIG WELDING 220A INVERTER TYPE

and MIG WELDING

  • Aluminum, Stainless Steel, Steel fabrication


ASK ABOUT DESIGN AND PROTOTYPE FABRICATION SERVICES.
