Designed and manufactured 304 stainless and 6061-T6 Aluminum components for a hydraulic rotary dampener with adjustable needle valve

Client specified unique power supply design

Billet 6061-T6 Aluminum parts assembly with sand blast finish and Black Anodize.

Laser Cut Composite frame for a Servo Turn Table, will be used in the film industry to achieve machine automated precision moves.

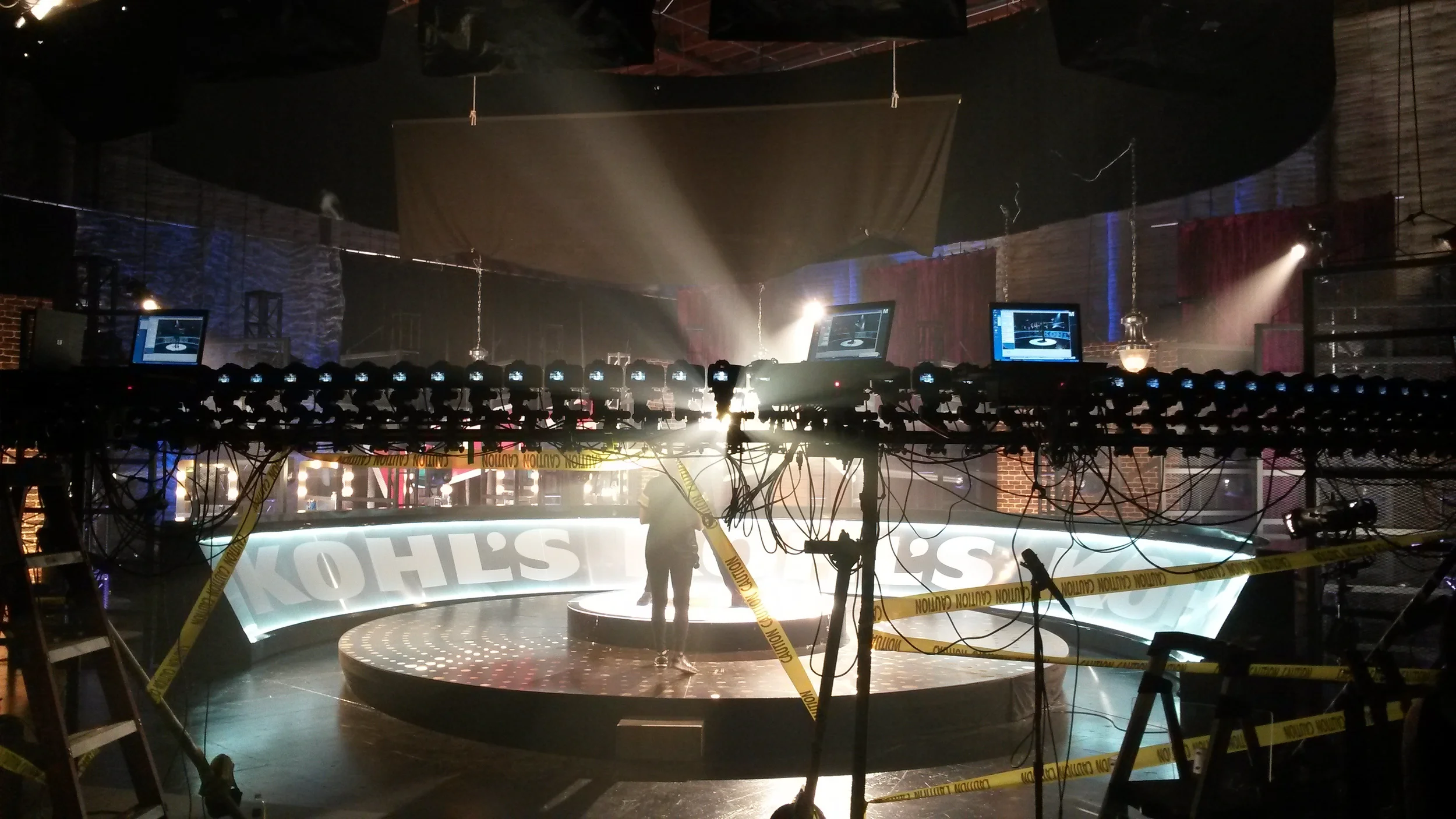

Implemented an FPGA controller to run motion control on 4 stepper motors, the show creators wanted a large clock that operated like a real one, literally needed to look like it was "ticking" geared stepper motors and code implemented the a huge egg timer for the shows count-down.

A side project for my Dad, a 4 foot long Aluminum drum roller to help load a boat over the back side of the camper roof.  Turned 6061-T6 aluminum and ball bearings.

I designed a printed pcb winding motor, each pcb has routed windings that sandwiched in series with each layer of another pcb.  The rotors are Rare earth NdFeB magnets press fitted into 3D printed rotor housings. stacked and air cooled. Electromganetics fun stuff

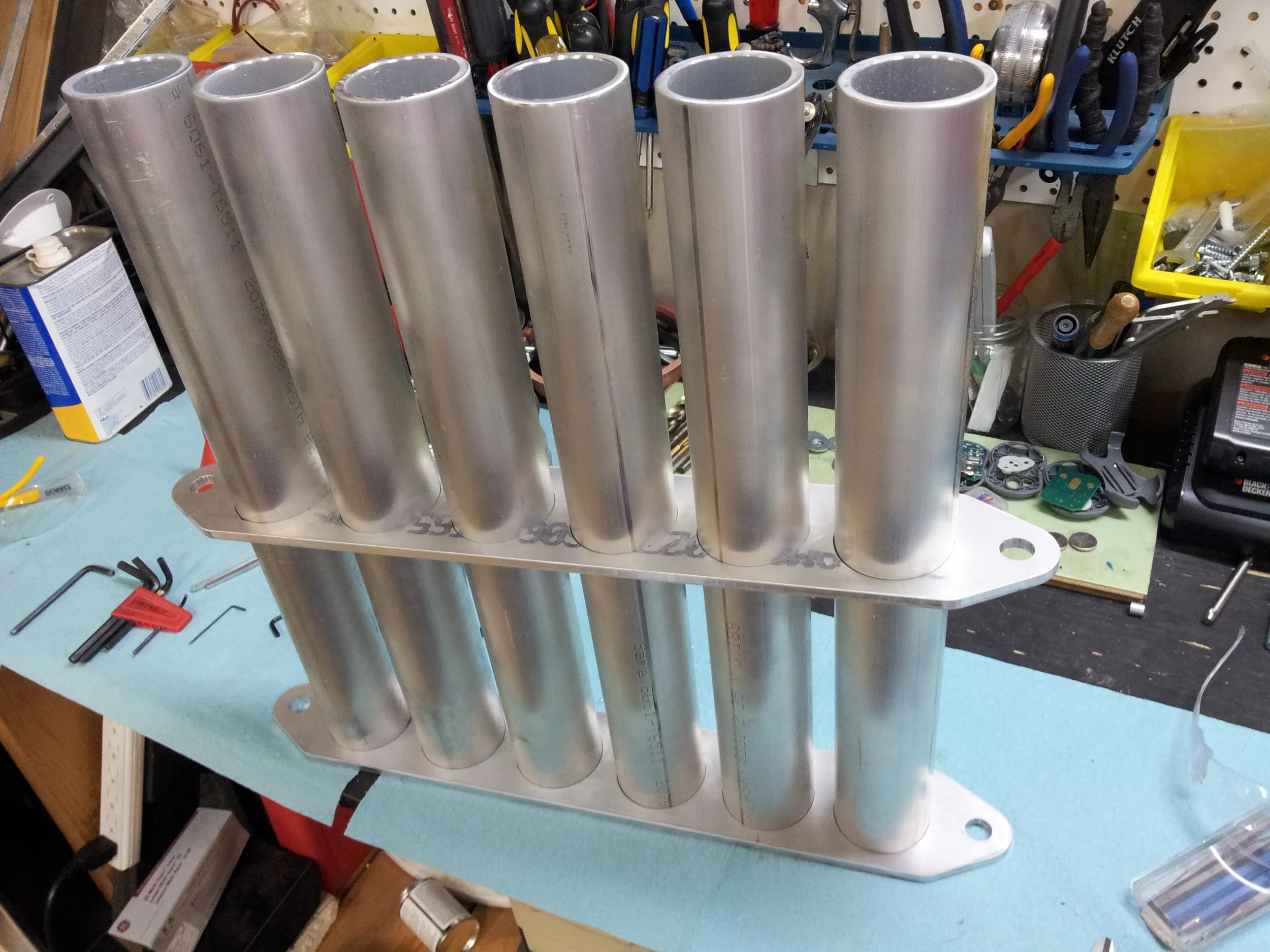

before the 6061-T6 aluminum tubes and plate were TIG welded, this was so the fireworks went high enough nobody knew where they came from ;)  The bottom plated was CNC milled to encapsulate the tube ends to suppert the higher pressure side of the tube.

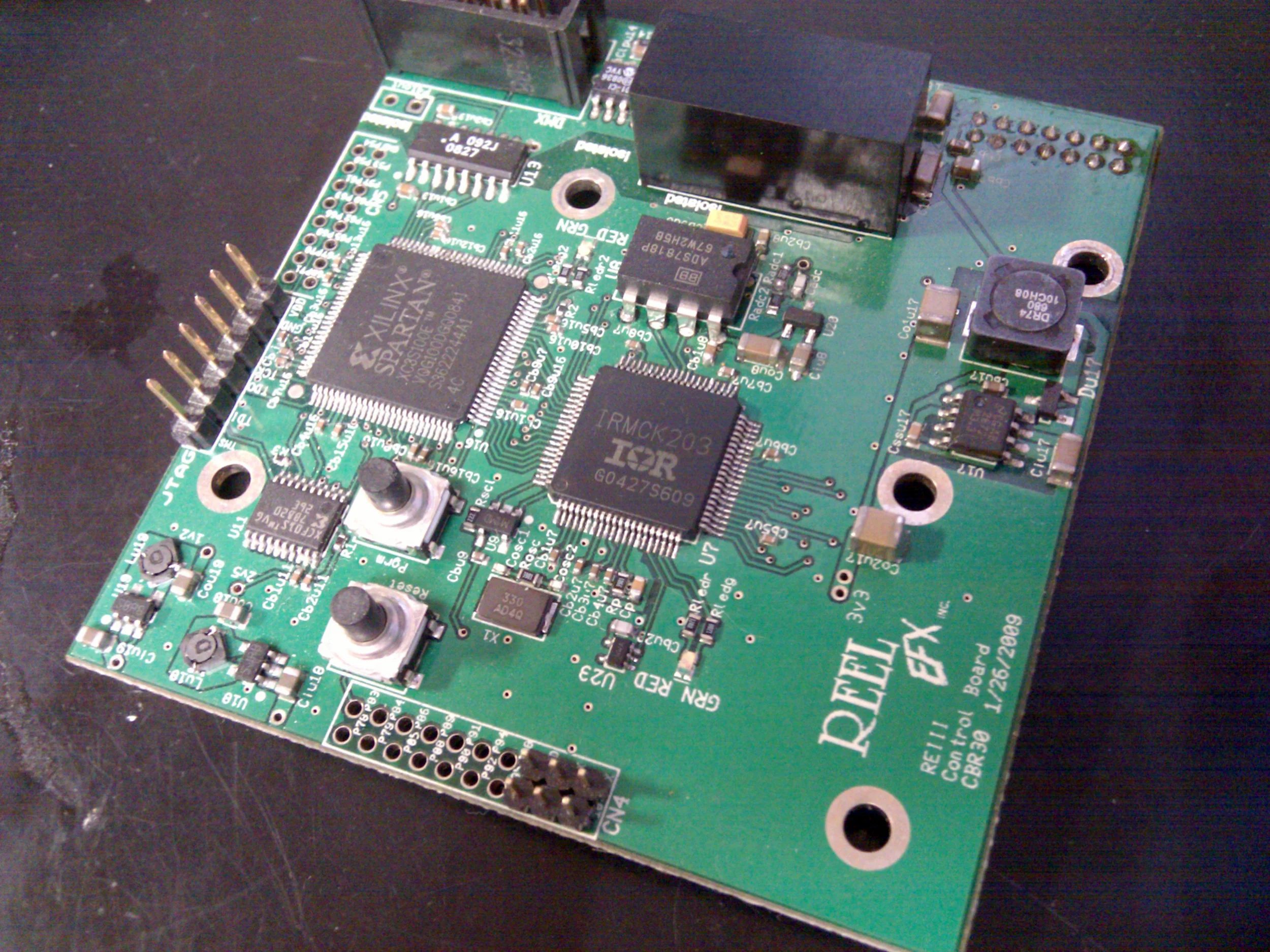

4 layer PCB design, FPGA controller with IR motion controller for VFD. FPGA programming to implament cutting edge operational features not known in the motor control industry to silently operate the variable speed drive to use higher frequency inverter switching to quite the motor during low speed and lower the frequency to improve efficieny during high power.

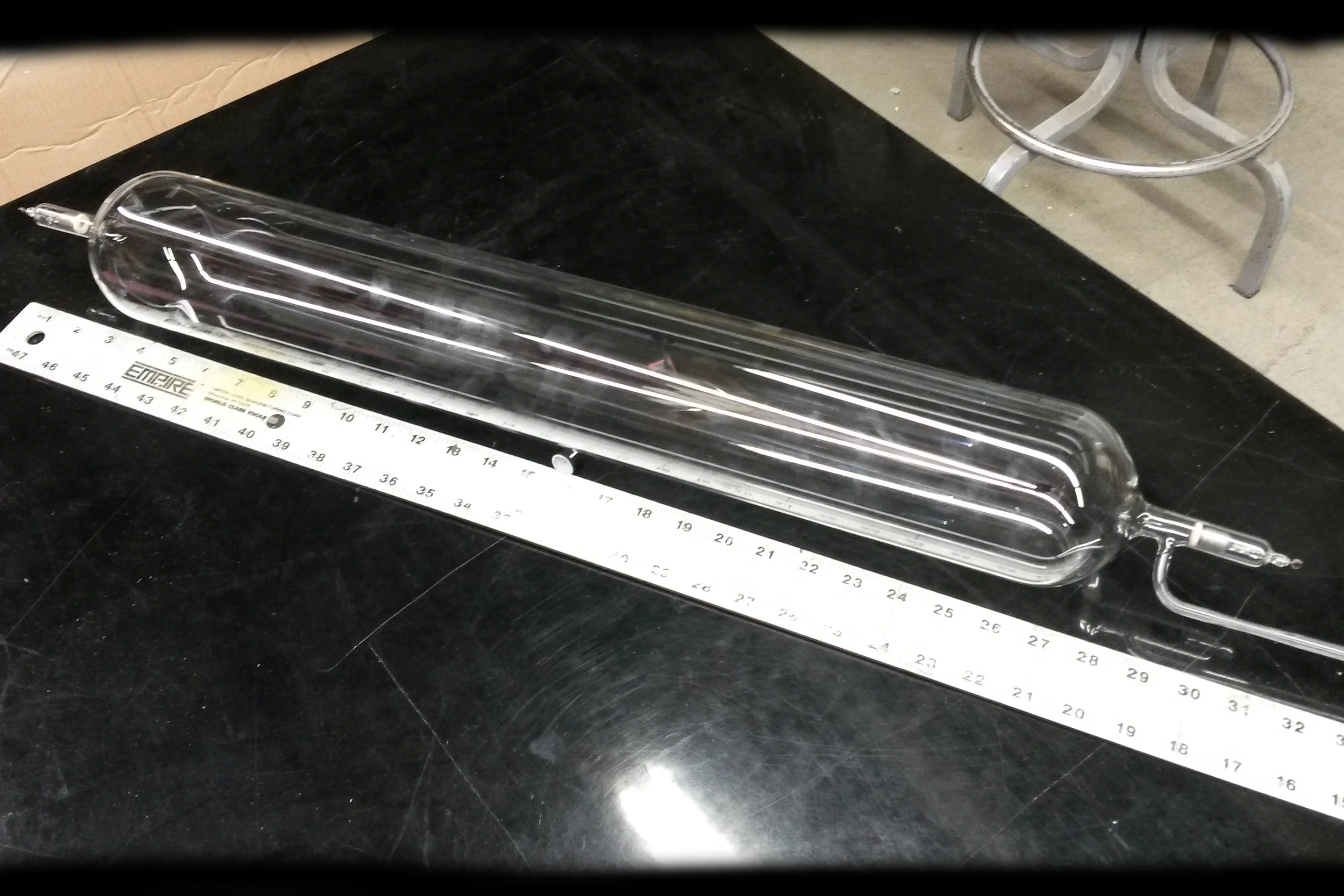

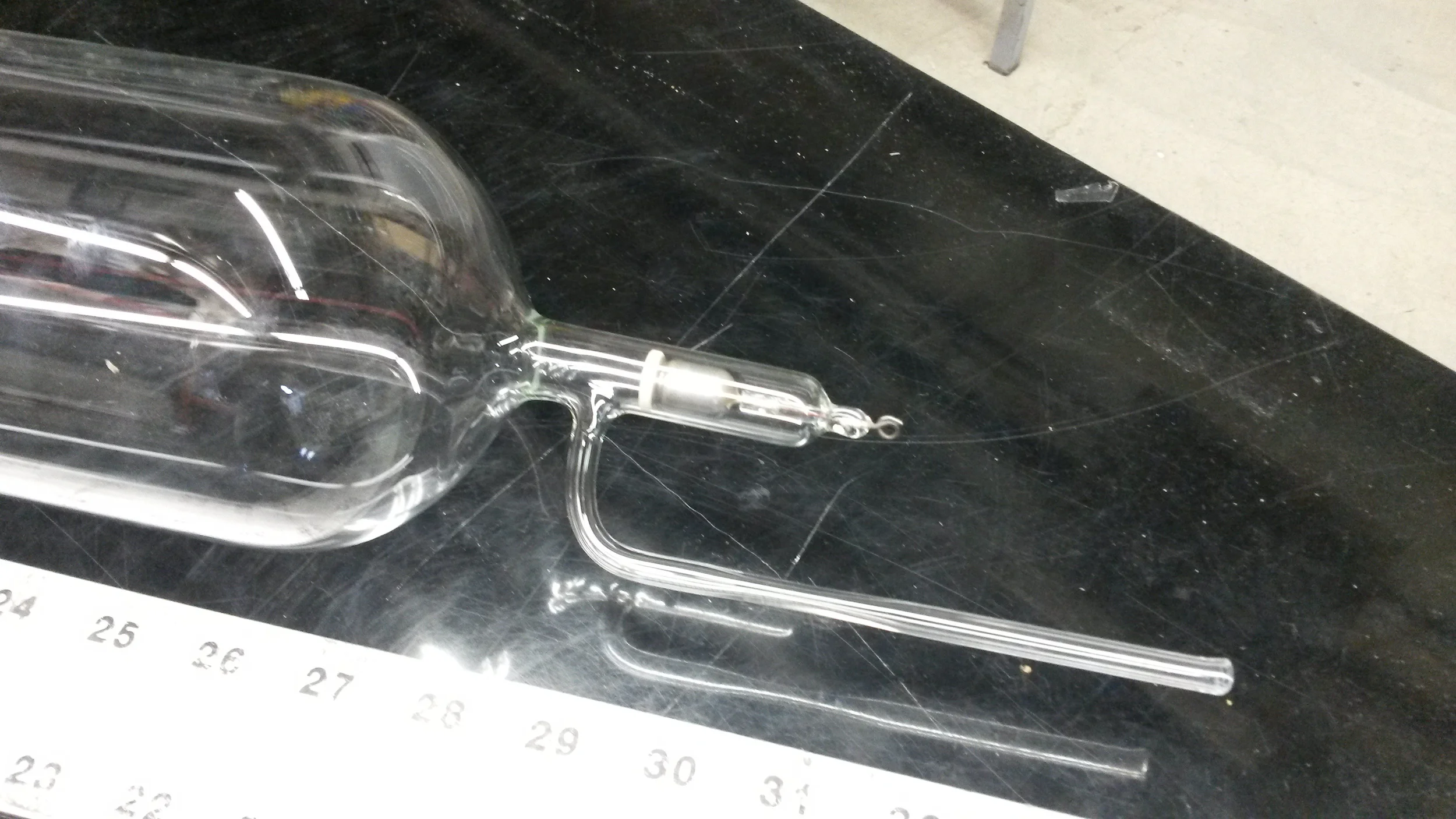

Designed a 24" x 4" gas charged lighting tube with electrodes for special effects.

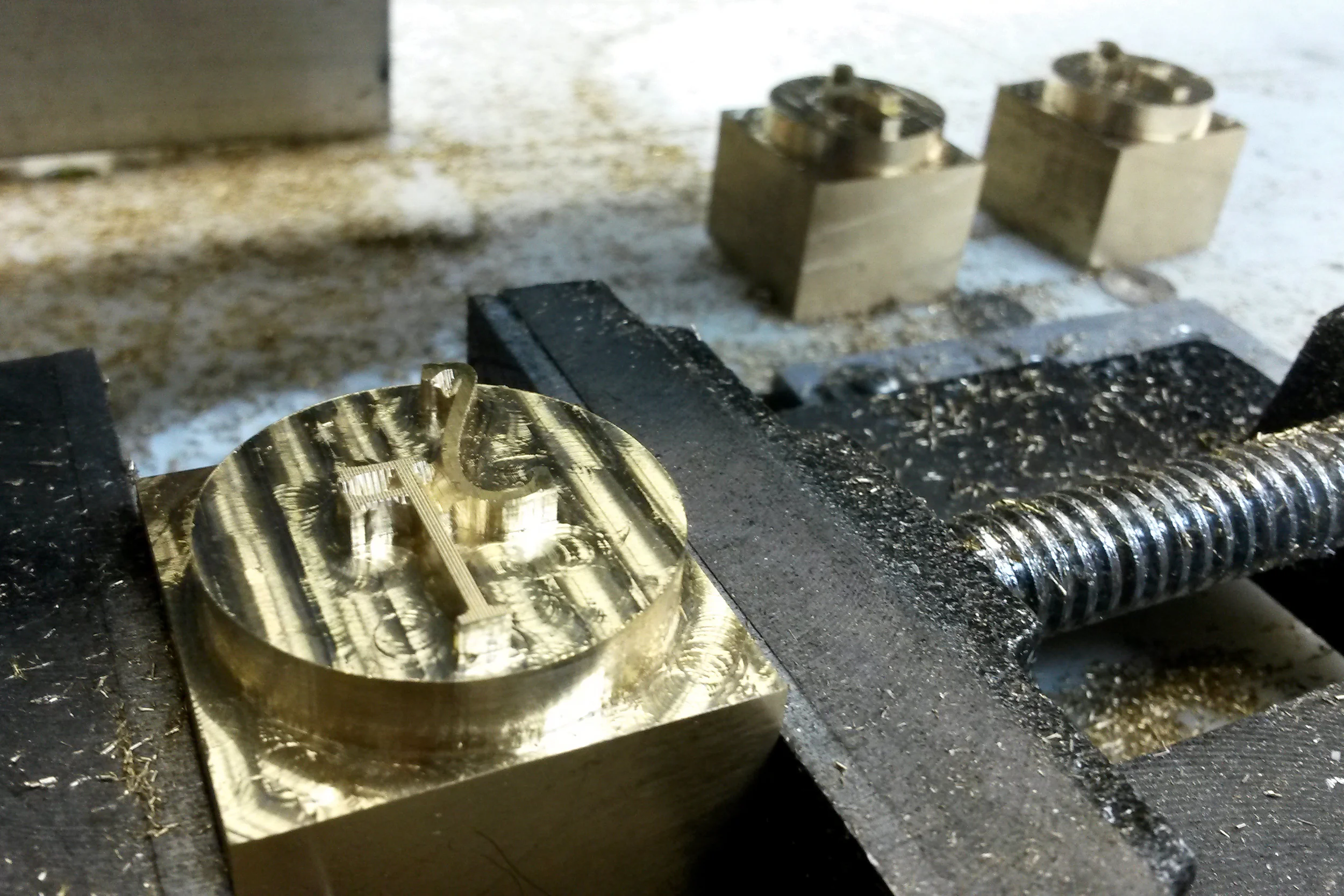

rapid 3D Milling of Brass hot stamps, used to sear a logo on a live set, special effects.

First professional creation was a control system to fire Canon 30D Digital camera in array, up to 150 cameras.

Laser Cut rubber gasket.

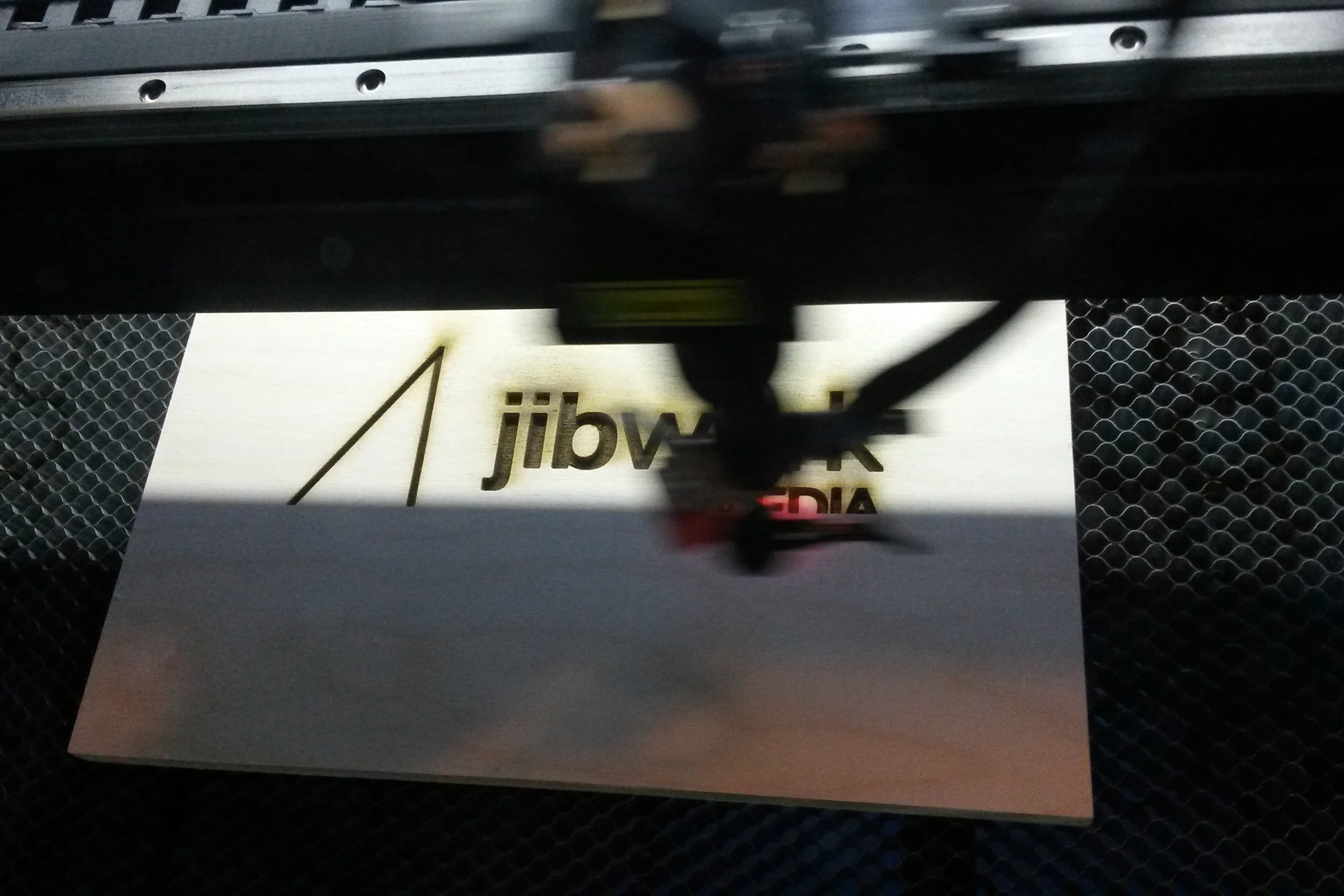

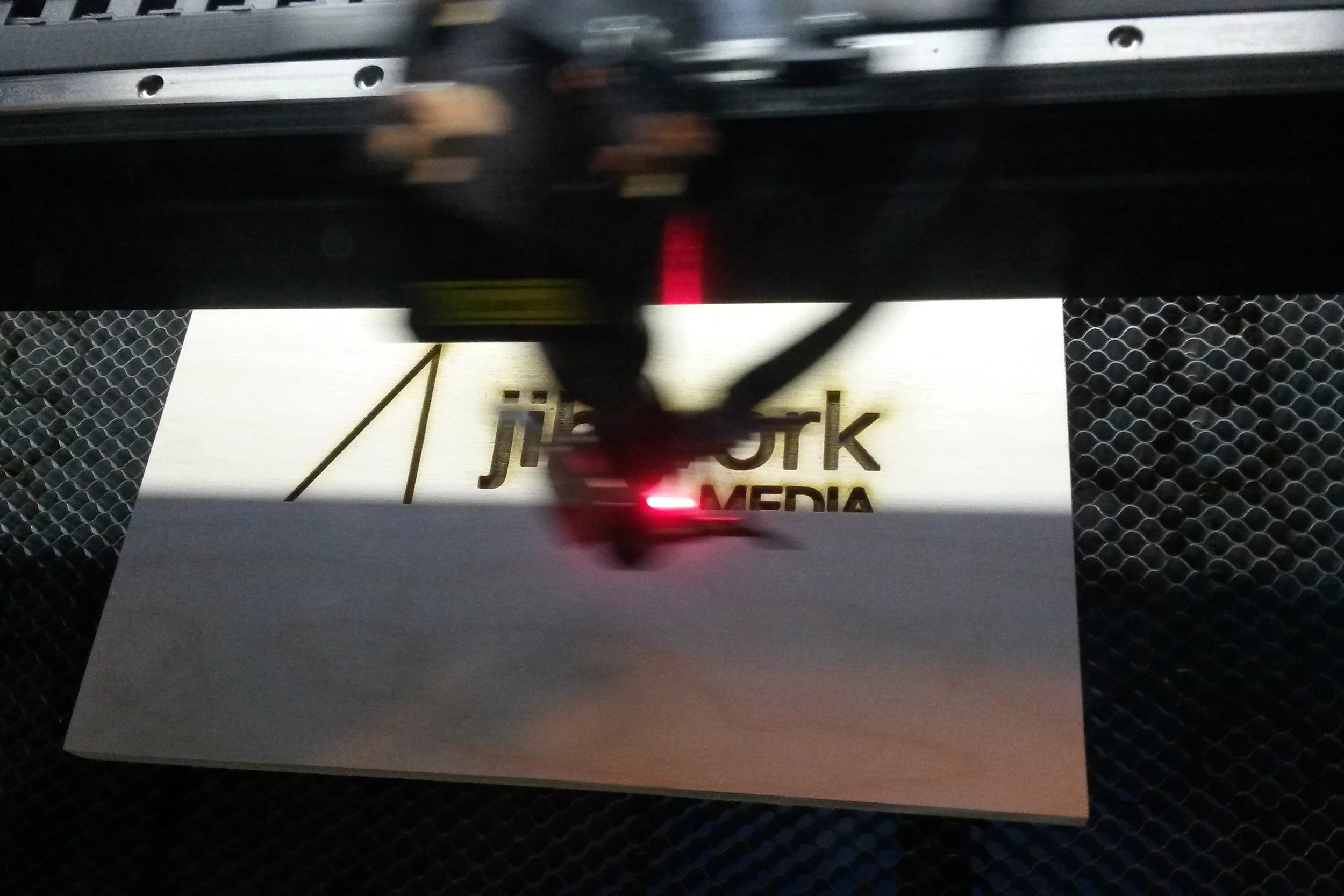

laser etching a logo in hardwood for my sisters web media company

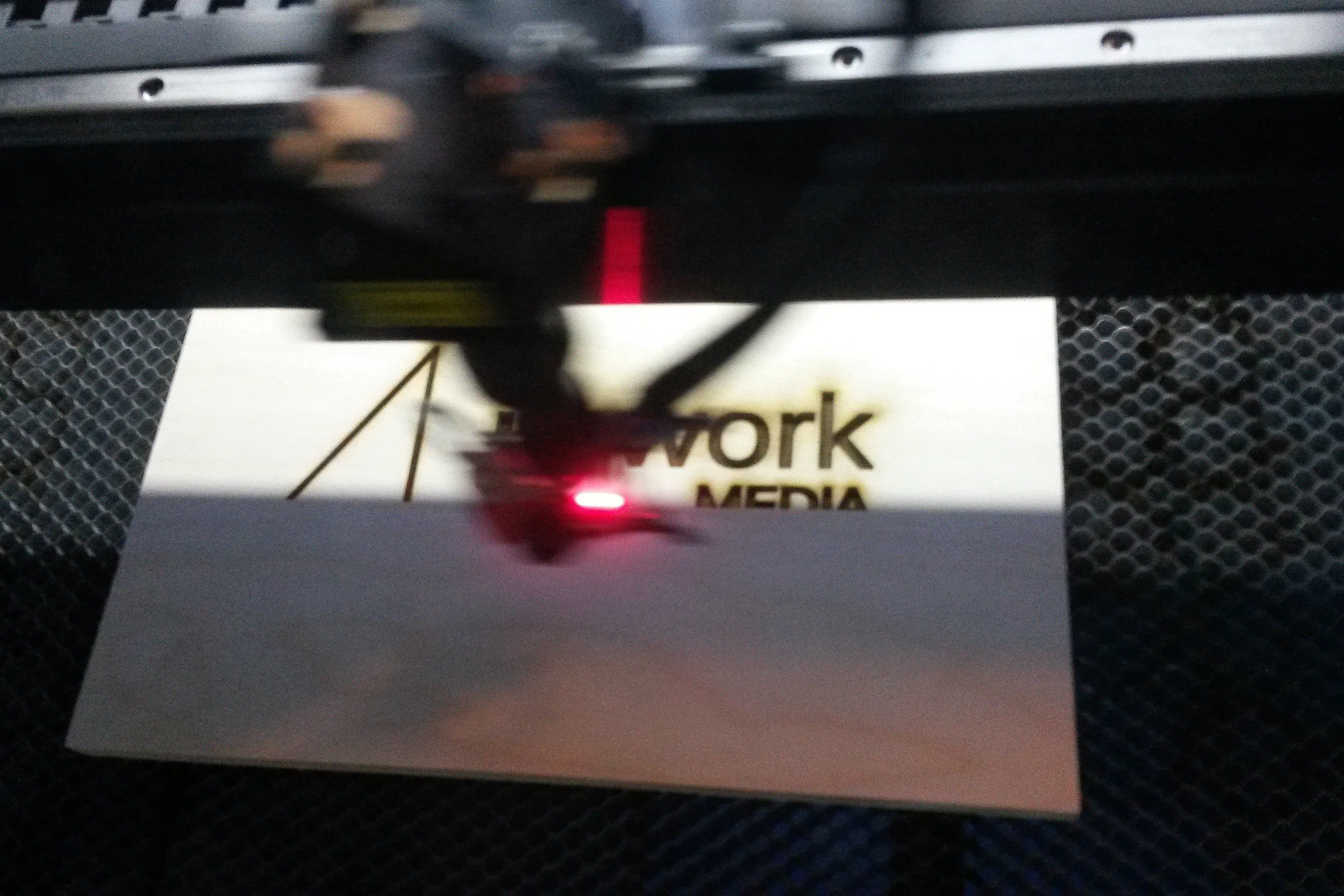

laser etching a logo in hardwood for my sisters web media company

laser etching a logo in hardwood for my sisters web media company

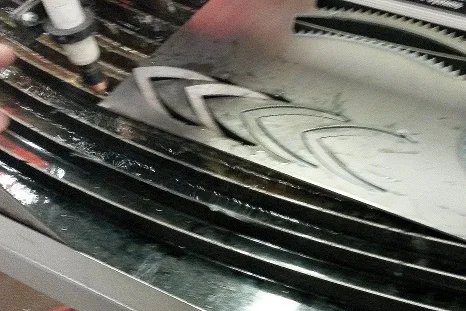

Plasma cut parts to replicate old iron holddown stakes for a large anvil, because someone asked.

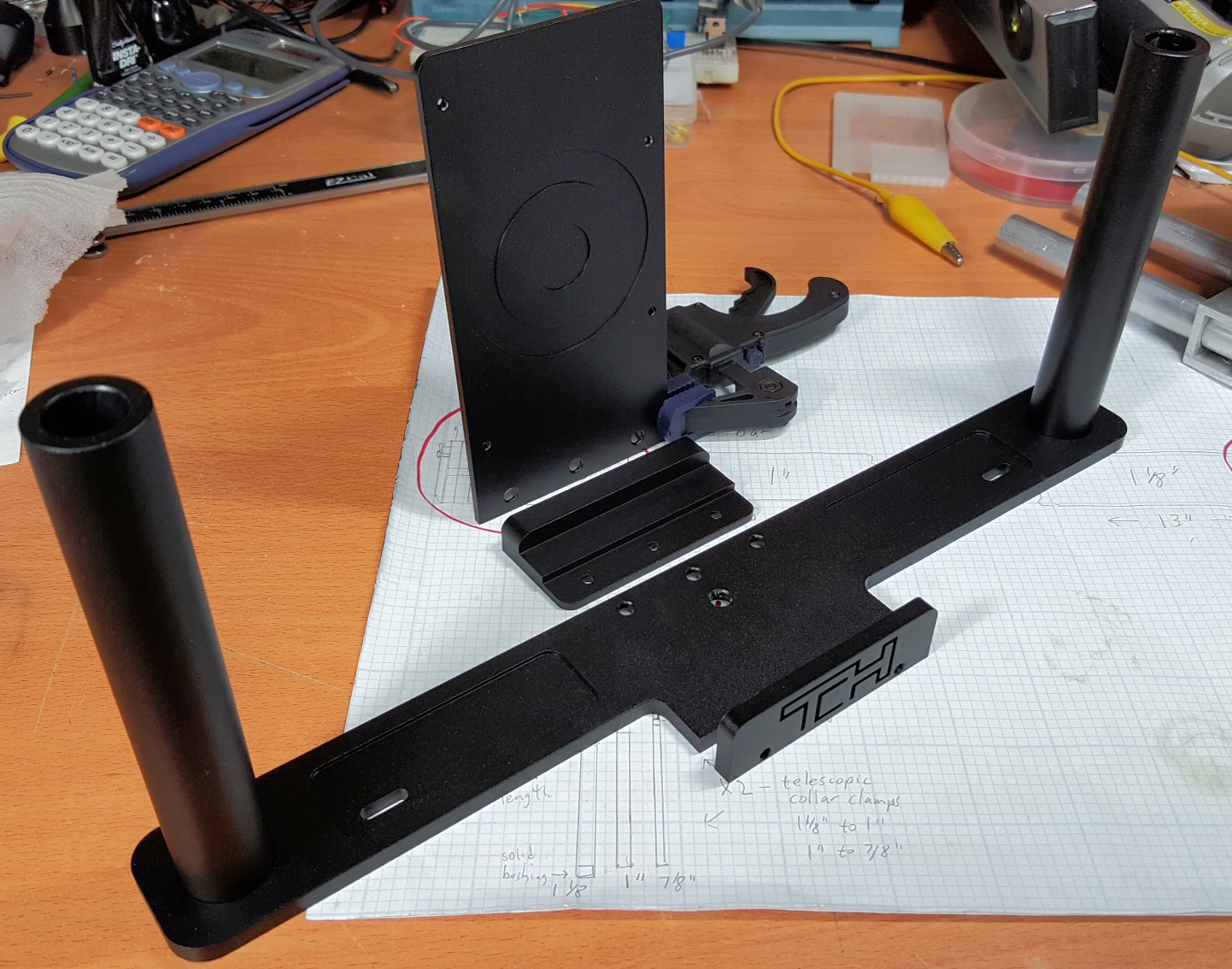

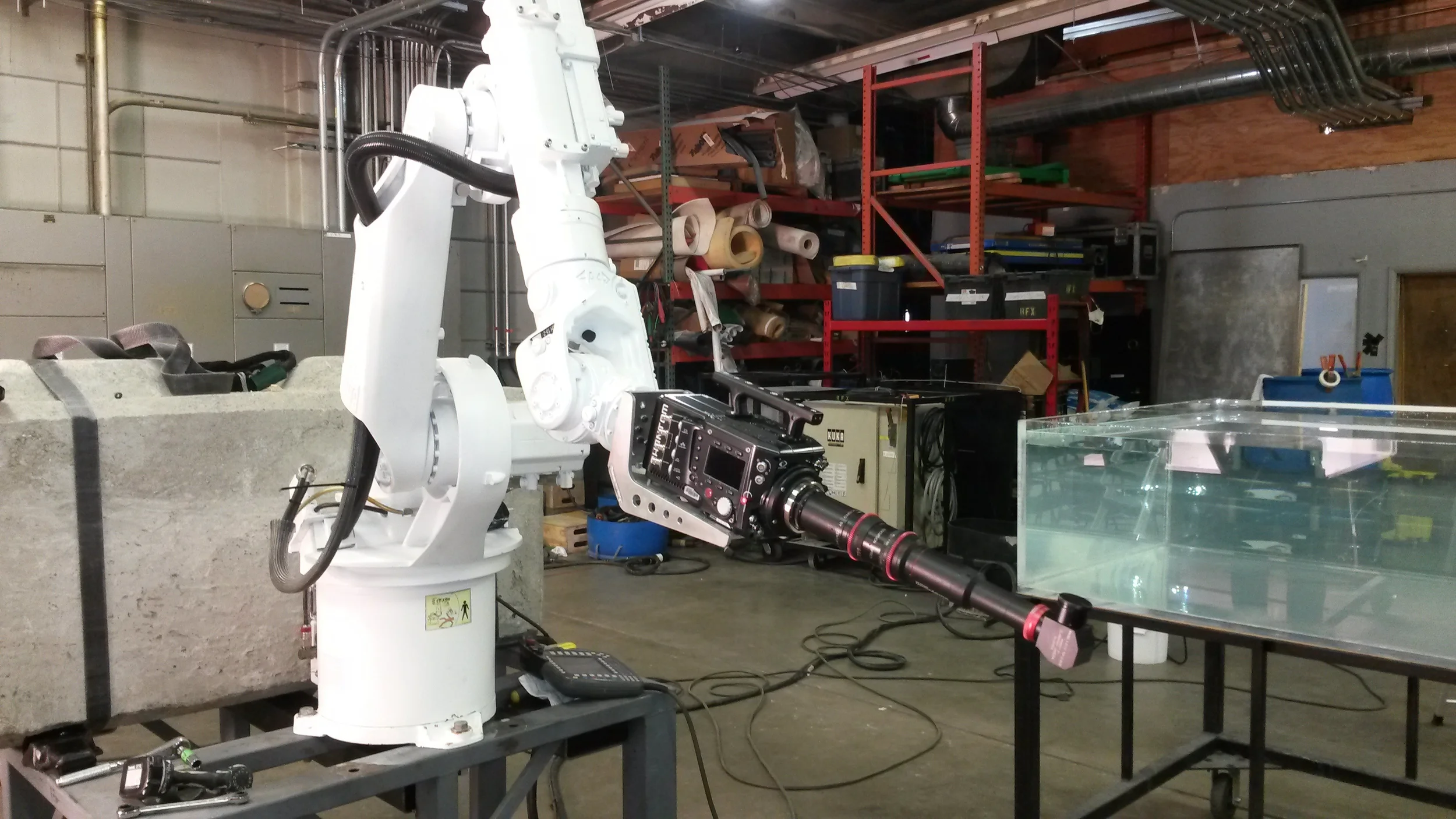

Designed a camera mount for a Phantom Flex4K, used on a 6 axis Kuka robot for a film shoot, underwater effects, using periscope lens. Designed in the morning, fabricated that afternoon, shot with it the next day.

Designed a camera mount for a Phantom Flex4K, used on a 6 axis Kuka robot for a film shoot, underwater effects, using periscope lens. Designed in the morning, fabricated that afternoon, shot with it the next day.  Designed to accomodate Phantom cooling requirments.

Polyfoam seal sample, low cost weather sealing for LCD screen

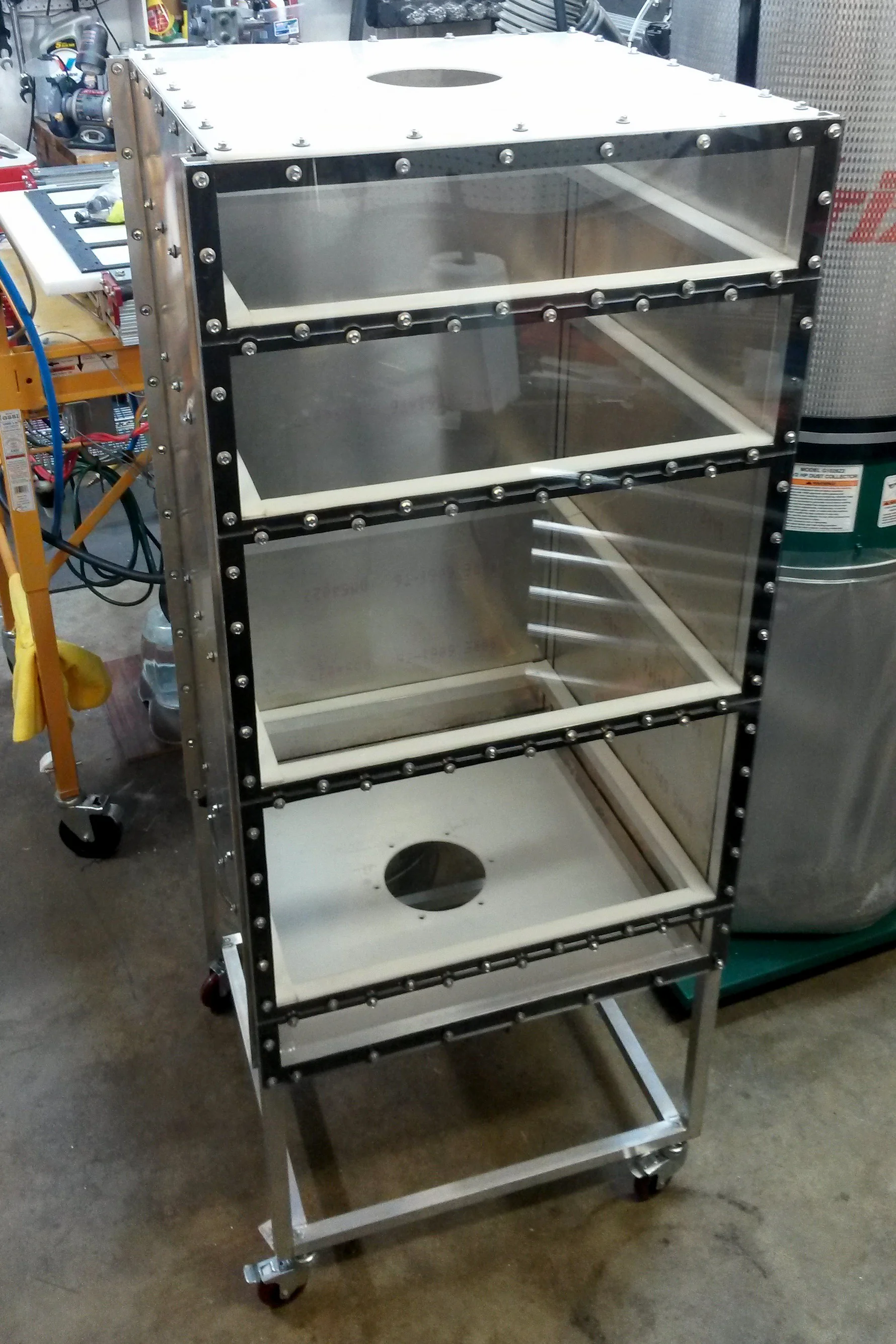

4 stage air filtration unit for laser cutting machine, TIG welded aluminum frame, Plasma cut aluminum sheet walls, Laser cut Acrylic transparent access panels, and HDPE top and bottom for ducting.

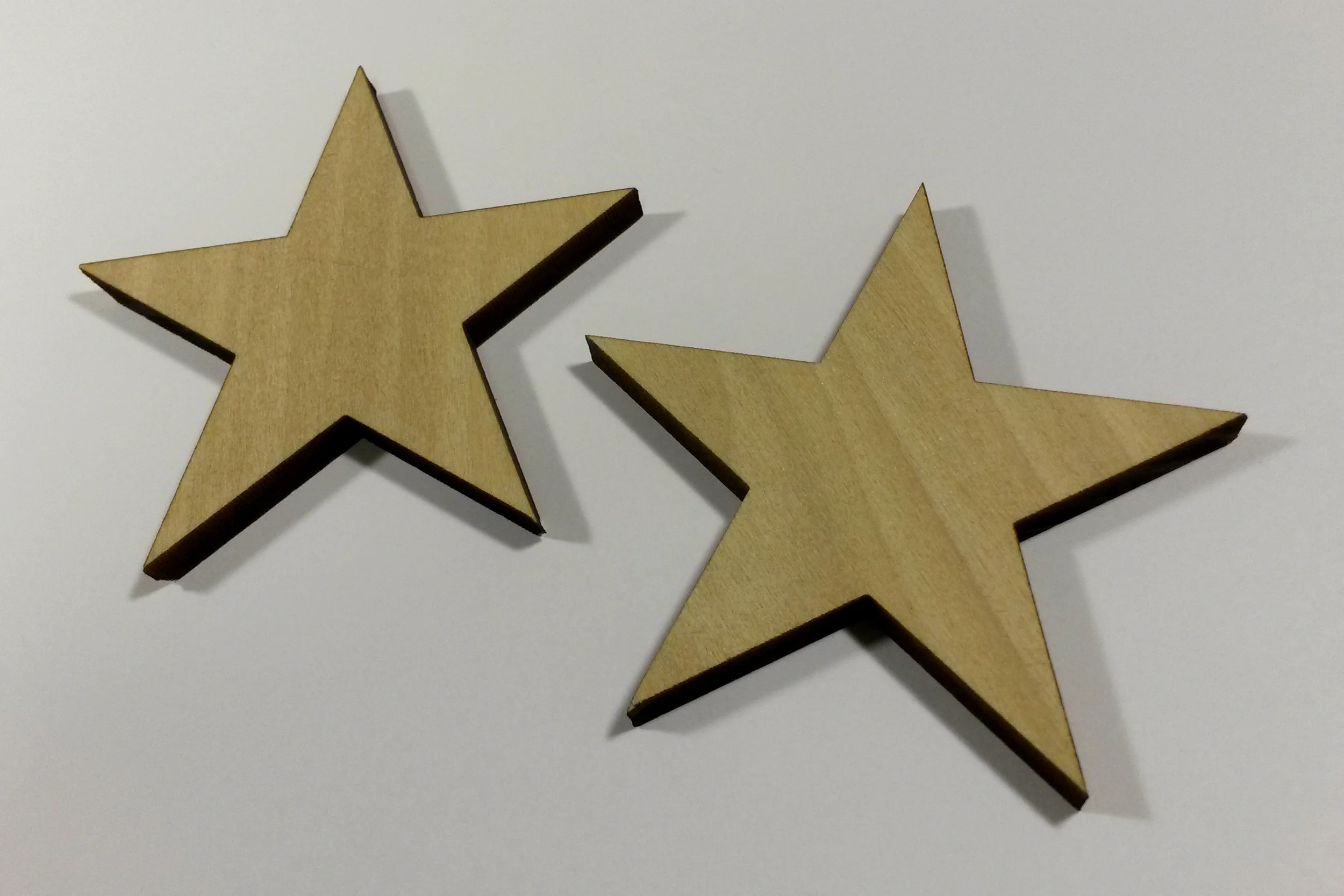

simple star shapes laser cut from poplar wood, fast inexpensive decrations.

White acrylic parts for a client, builds and sells Charging systems for electric cars.

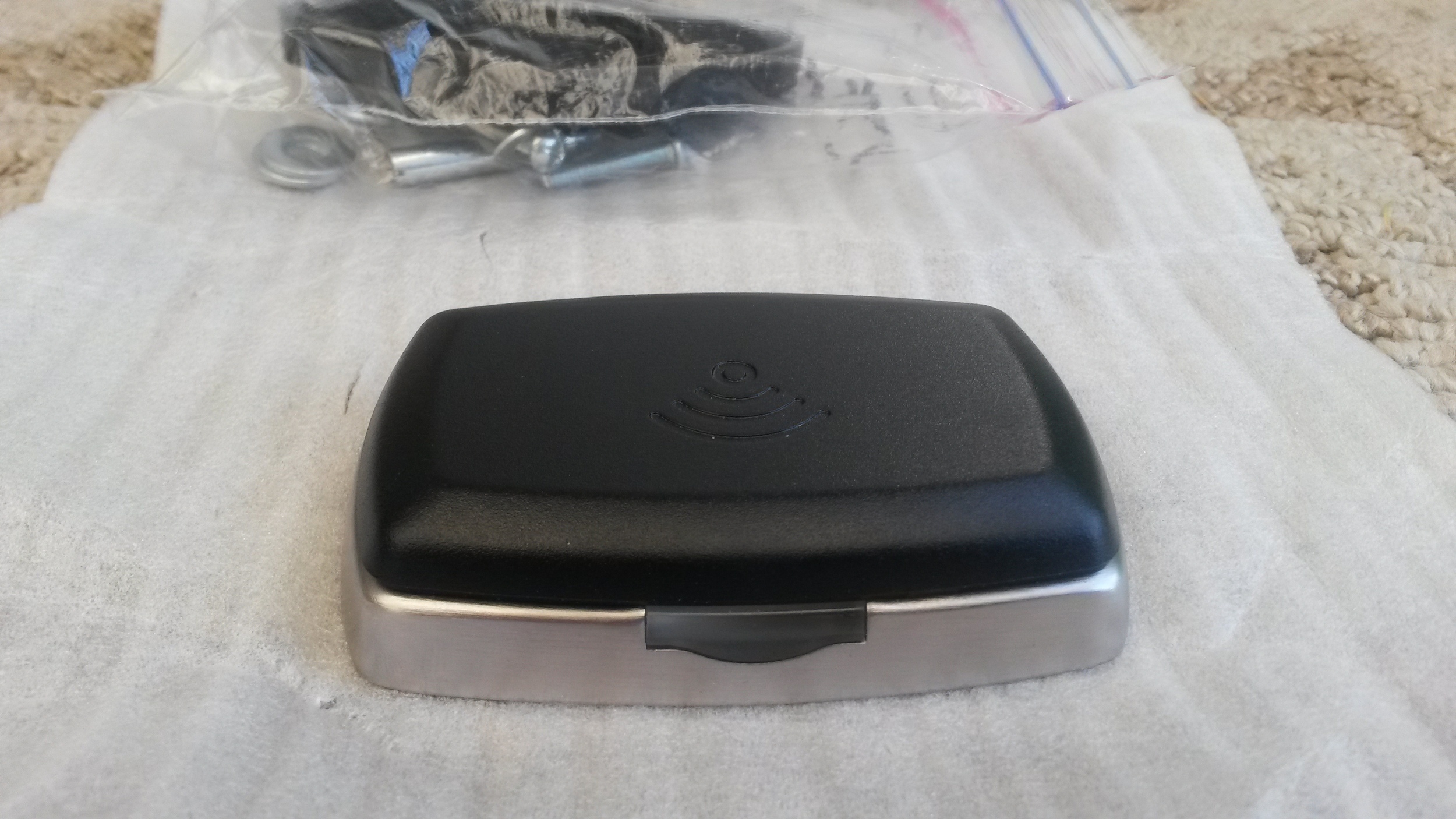

RFID Door look modified for film set use, internal stripped and replaced with 2.4Ghz RC receiver, PWM operated relay, lipo battery pack.  Could be remotely activated for filming purposes.

6061-T6 part sand blast finish with Black anodize per clients design

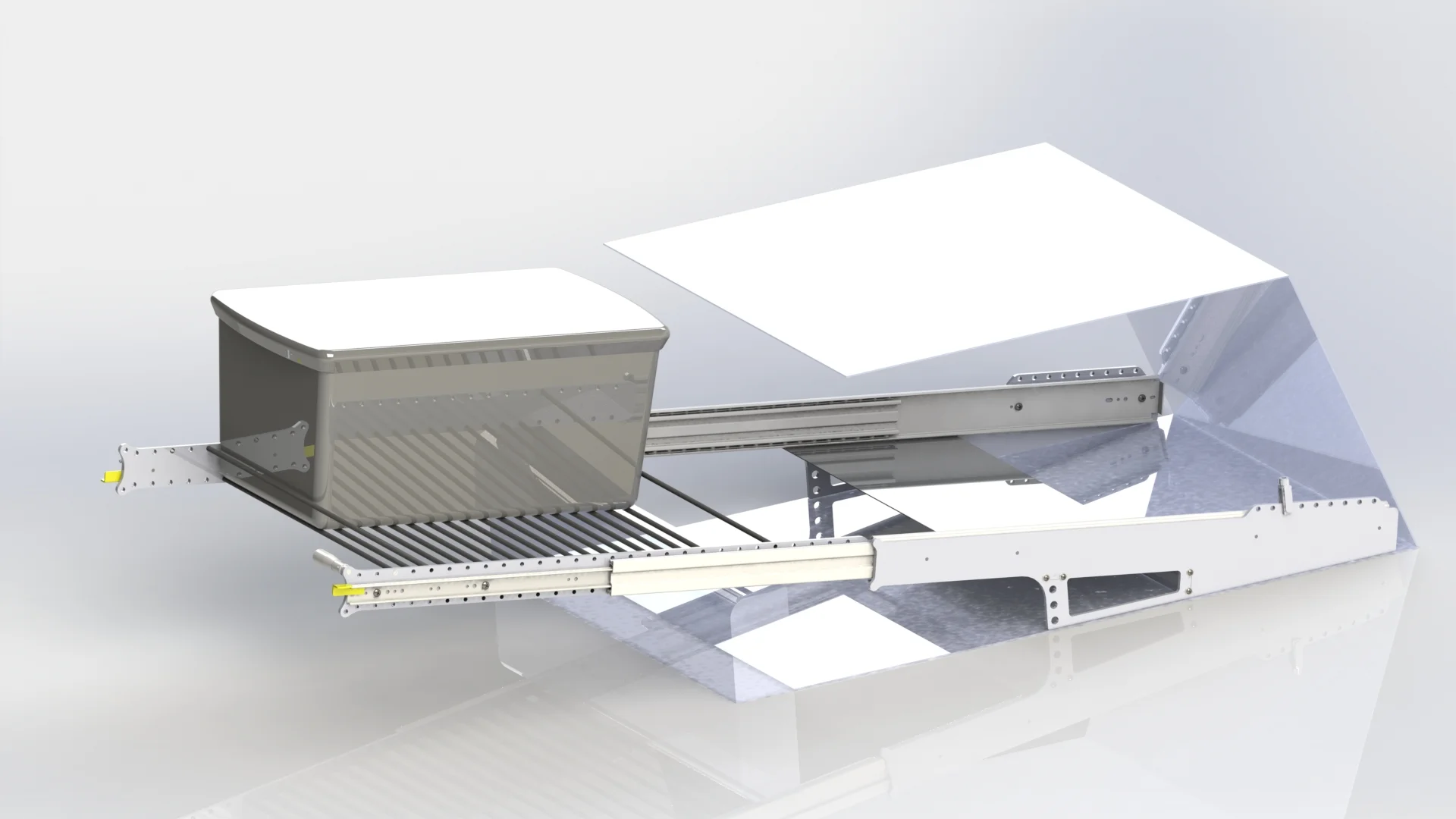

36in Ball bearing slide out drawer for 2013 Ford Fusion.  Designed to optimize space and usage for traveling nurse who must carry supplies to a patient's home in an organized and sanitary fashion.

36in Ball bearing slide out drawer for 2013 Ford Fusion. Constructed of 6061-T6 Aluminum, Carbon Fiber tubes, and Steel hardware. Folding handle for convenience.

36in Ball bearing slide out drawer for 2013 Ford Fusion. Constructed of 6061-T6 Aluminum, Carbon Fiber tubes, and Steel hardware. Folding handle for convenience.
